FloodShield Model 3
The FloodShield Model 3 is perfect for smaller gates and entryways. It features a space-saving design, an easy one-turn lock, and strong aluminum panels, giving you reliable flood protection that is lightweight and fast to set up.
Product Overview
Maximum Height: Up to 1 meter
Width: Custom-fitted, up to 2 meters
Materials: T5 aluminum alloy & stainless steel components
Locking System: One-turn tightening lock
EPDM Rubber Seal: Watertight protection built to last
Lightweight & Easy to Deploy: 4 kg per 1.5m aluminum panel
Configuration
Available Sizes
| Number of Panels | Total Height (mm) |
|---|---|
| 6 | 1,000 |
| 5 | 838 |
| 4 | 675 |
| 3 | 513 |
| 2 | 350 |
Detailed Components

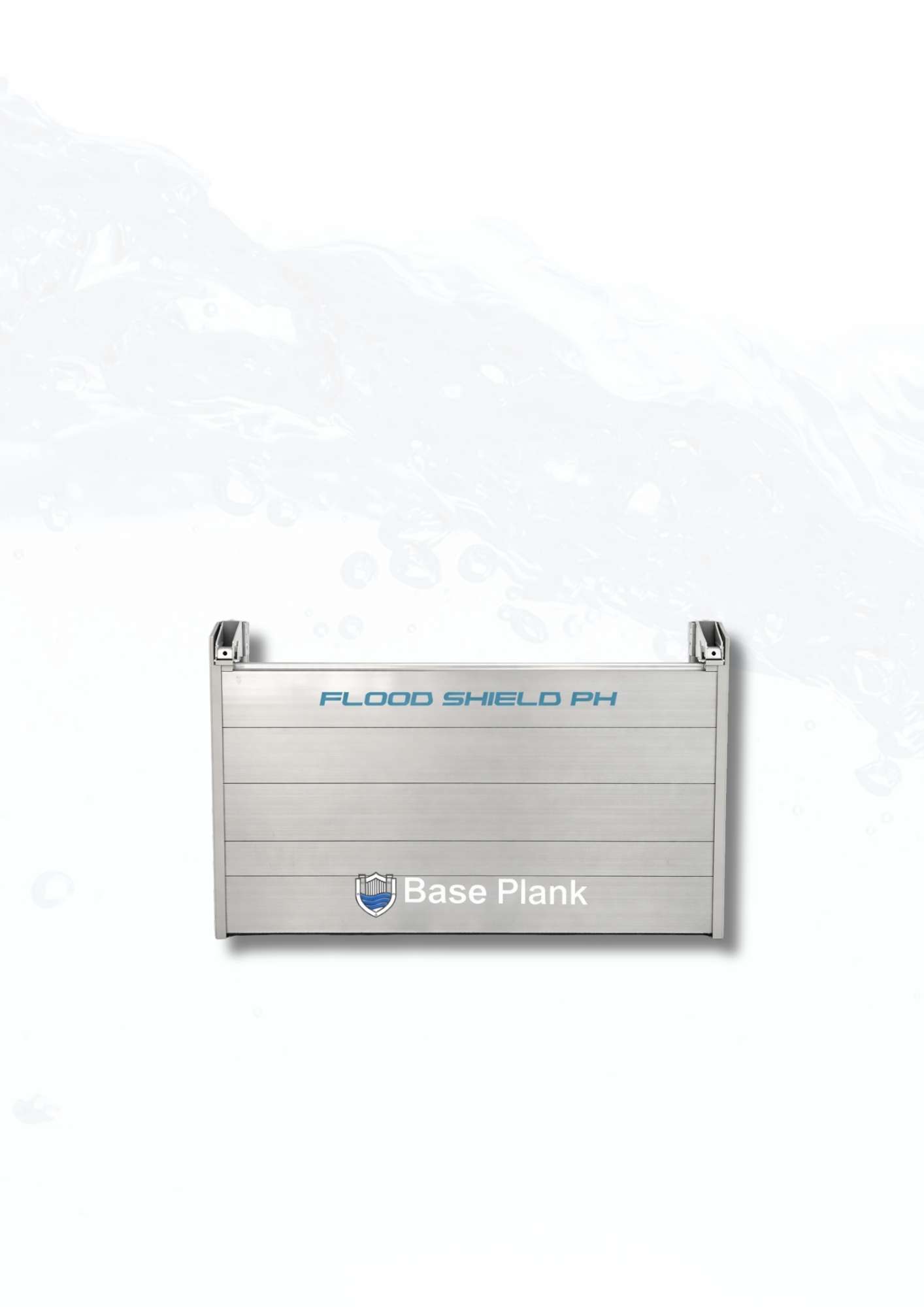

FloodShield Model 3 Features
Water Panels
01- Each panel measures 16 cm high, 3.5 cm wide, with a thickness of 2 mm.
- 6 integrated lateral layers for superior water pressure resistance.
- Side covers included to prevent dirt and water infiltration during storage.
- Lightweight at 4 kg per 1.5m — easy to handle, transport, and deploy under pressure.
Base Plate
02- Sits fully level with the ground surface — eliminating trip hazards and preventing water or debris accumulation.
- Engineered to withstand extreme load: successfully passed an 80-ton load test with zero deformation.
One-Turn Tightening Lock
03- Insert, twist, and lock the barrier securely in seconds.
- Provides a fast, foolproof seal that ensures watertight integrity during emergency deployment.
Foldable Side Posts
04- Foldable side posts for space-saving in residential doorways.
- Protective side post covers offer added safety and a clean, professional finish integrated with your doorway.
- Rust-proof tracks stay clean and free from debris when the barrier is not in use.
